Efficient Aluminium Container Manufacturing

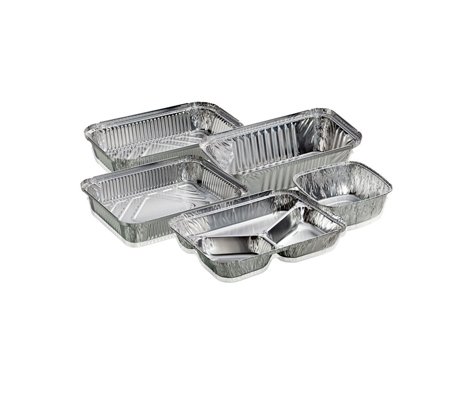

Aluminium Foil Food Container Making Machine

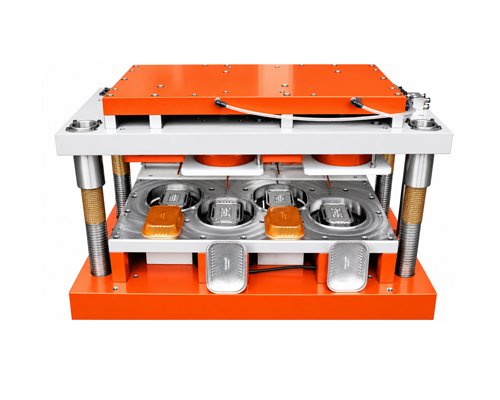

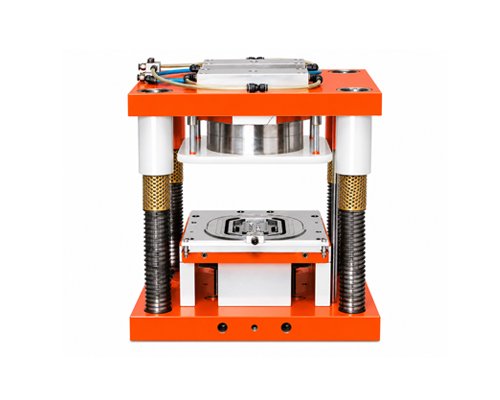

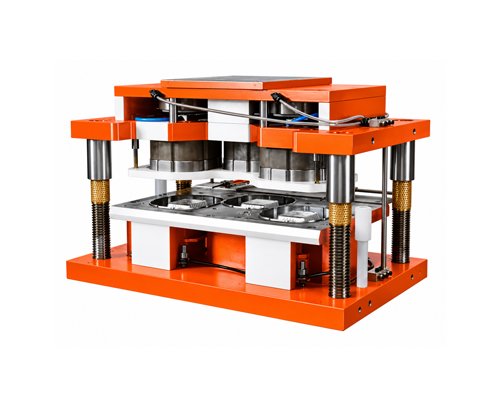

The Aluminium Foil Food Container Making Machine is designed for efficient container production and reliable industrial operation. It supports different mould configurations, including single, double, triple, and four cavity moulds, allowing flexible production requirements. With a machine power of 10 KW and a punch time of 60–100 times per minute, it provides consistent forming performance. The machine features a 200 mm stroke length and dimensions of 2650 × 1550 × 2650 mm. It can also be customized according to specific client requirements.
- Flexible Mould Configurations
- Consistent Forming Performance
- Efficient Container Production
- Customized Machine Solutions
| Specification | Details |
|---|---|
| Press Capacity | 45 Ton Pneumatic Press |

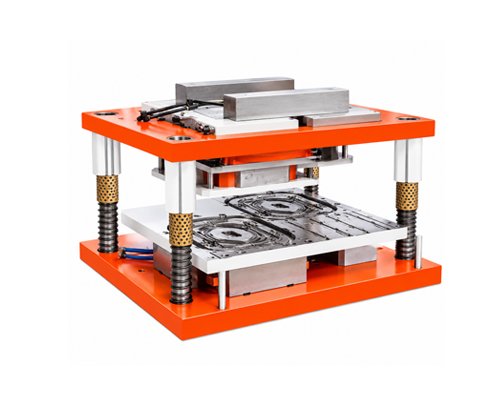

| Double Cavity Mould | 250ml–1000ml |
| Drive Motors | 1KW Servo Motor, 7.5HP Gear Box AC Motor, 1HP Gear Box AC Motor, VFD Control Panel with PLC & HMI |
| Production Capacity | 60–100 pcs per min |
| Phase | 3 Phase |
| Total Power | 15 HP |
| Max Raw Material Weight | 500KG |
| Max Raw Material Diameter | 1000MM |
| Max Feeding Width | 450MM/600MM |
| Feeding Speed | 20–60M/MIN |
| Length Range | 30–999MM |
| Machine Weight | 800 kgs (approx.) |
| Machine Size (LBH) | 3150*2000*1150MM |
| Floor Size Required | 600 Sq ft |
